製品詳細
起源の場所: シチュアン,中国
ブランド名: SHUNUOTECH
証明: ISO9001
支払いと送料の条件
最小注文数量: 交渉可能
価格: negotiable
パッケージの詳細: 部品は海上用か輸出用紙箱に詰められています
受渡し時間: 10日または交渉可能
支払条件: L/C,T/T または交渉可能
供給の能力: 1000個/月
製品名: |
高効率のブレジングダイヤモンドホールオープナー |
材料: |
ダイヤモンド+鋼+冷却ワックス |
適用する: |
非金属の壊れやすく硬い材料の穴開き |
Spec.: |
φ6-φ12mm またはカスタマイズ |
利点: |
高効率で耐久性 |
証明: |
ISO9001 |
製品名: |
高効率のブレジングダイヤモンドホールオープナー |
材料: |
ダイヤモンド+鋼+冷却ワックス |
適用する: |
非金属の壊れやすく硬い材料の穴開き |
Spec.: |
φ6-φ12mm またはカスタマイズ |
利点: |
高効率で耐久性 |
証明: |
ISO9001 |

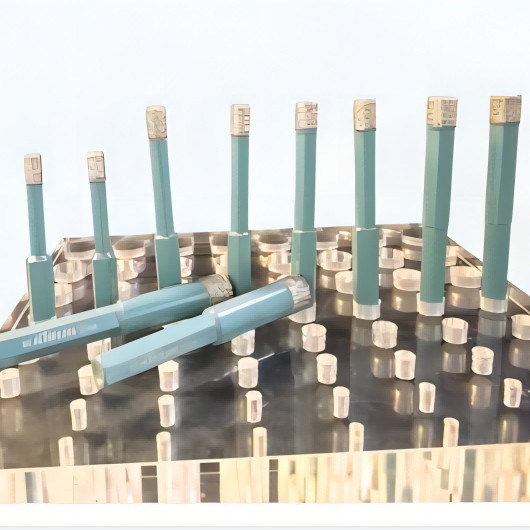

High Efficiency Brazing Diamond Hole Opener for Galsses and Tiles
The brazing Diamond Hole Opener is made of high-quality diamond sand and filled with cooling wax. Its mainly used in milling, drilling, reaming, chamfering, etc.
Technical Specification:
| Sand width(mm) | Drill bit diameter(mm) | Working depth(mm) | Handle diameter(mm) | Total length(mm) |
| 10 | 6 | 28 | 5.5 | 66 |
| 10 | 8 | 28 | 7 | 66 |
| 10 | 10 | 28 | 8 | 66 |
| 10 | 12 | 28 | 8 | 66 |
Note: All dimensions are manually measured, there may be errors, please refer to the actual product.
Product usage: for glass, all-ceramic tiles, vitrified tiles, marble, ceramics, granite
Applicable models: hand drill, angle grinder (The angle grinder needs to be equipped with a conversion chuck.)
Cutting method: dry drilling
Instructions for usage:
1. Lightly lean at 45 degrees, the smaller the force, the less likely it is toslip. Maintain high speed throughout the entire process and open a crescentshaped positioning groove;
2. Slowly drill vertically, shaking while drilling, and faster debris removalto increase drilling speed.
3. The faster the speed, the more holes can be punched, and the recommended speed is above 2600mpr/m.
4. Vertical hard top and vertical pressing are prohibited, otherwise the service life will be greatly reduced.
Product advantages:
Easy dry drilling of all kinds of stone tiles;
No need to add water, just dry drill to the bottom;
Hexagonal handle clamping is more stable;
Secret cooling wax has good cooling and lubrication effects.
About us:
We are a technology-based enterprise integrating research, custom design, manufacturing and sales of superhard material wear-resistant tools. The company's professional technical team has been committed to the superhard material tool industry for many years, especially in the design and manufacture of diamond and cubic boron nitride tools. The company is focusing on providing customers with high-quality products and services, and striving to achieve a win-win situation with customers.
FAQ:
Q: Are you a trading company or manufactuer?
A: We are a manufacturer with rich experience of international trade.
Q: Where is your factory? How can I visit there?
A: Our factory is located in Deyang, Sichuan, China. You can fly to Chengdu international airport, then we will pick you up.
Q: What payment methods do you support?
A: We support T/T, L/C, and other payment methods are accepted.
Q: What shipping methods do you support?
A: Sea transportation, air transportation, railway transportation, and road transportation, etc.
Q: What is your packaging?
A: The elements are wrapped by plastic film, and then packed in a wooden box sea-worthy or export standard.
Q: What is your delivery time?
A: The delivery time is usually 10 days or negotiable.
